KFI Winch 4500LB
Step up to serious pulling power for your UTV with the KFI 4500lb winch. Built for heavier machines and harder work, it delivers strong, reliable performance with an all-metal gear train and compact dimensions that suit most UTV setups.
Note: A model-specific winch mount is required to fit this winch to your ATV or UTV.
KFI do not recommend fitting synthetic rope to this model because it has an aluminium drum. Synthetic cables should only be used on winches with a steel drum as they constrict under load. For synthetic rope options, see models 350SE, 450SE and 385K.
Made under licence by KFI in China and imported direct from the USA, these winches are tested in extreme conditions and built for long, reliable service on the farm or trail. The 4500lb model will fit most UTVs, although a 3000lb unit is recommended for some smaller machines where space is tighter.

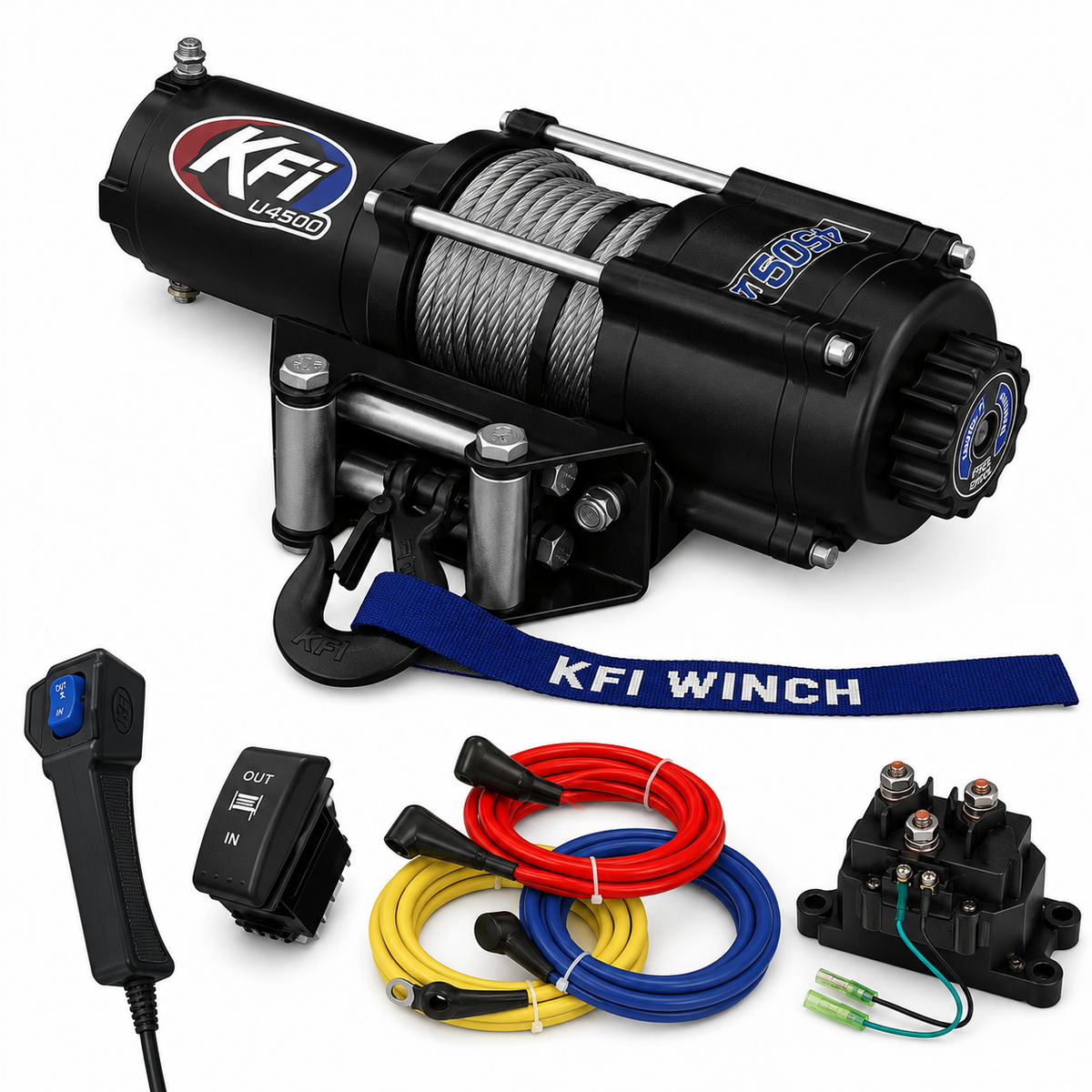

Includes:
-
4500lb KFI U4500 UTV Series winch
-
6mm x 11m steel cable
-
Multi-directional roller fairlead
-
Deluxe handlebar-mounted mini-rocker control switch
-
Optional dash-mount bracket for rocker switch
-
Heavy-duty corded remote switch
-
Power and control wiring
-
Mounting hardware for winch (vehicle-specific mount sold separately)
Specifications:
-
Model: U4500 UTV Series
-
Rated line pull: 4500lb / 2040kg
-
Motor: 12V DC, 1.7hp permanent magnet
-
Gear ratio: 166:1
-
Gear/transmission: all-metal planetary gear drive
-
Brake: dynamic and mechanical
-
Clutch (free-spooling): all-metal cam-activated freespool
-
Drum size: 50mm (D) x 81mm (L)
-
Cable: 6mm (D) x 11m (L) steel cable
-
Fairlead: multi-directional roller
-
Control: handlebar-mounted mini-rocker switch (with optional dash mount) + heavy-duty corded remote
-
Winch dimensions: 370mm (L) x 116mm (D) x 127mm (H)
-
Mount plate: fairlead mount only (model-specific vehicle mount required)
-
Mounting bolt pattern: 3.00" x 4.875" (76.2mm x 123.8mm), 4-hole
-
Recommended battery: 12Ah minimum
-
Warranty: limited 1-year
-
Winch weight (complete kit): approx. 16.6kg (36.6lb)
