KFI Winch 3000lb

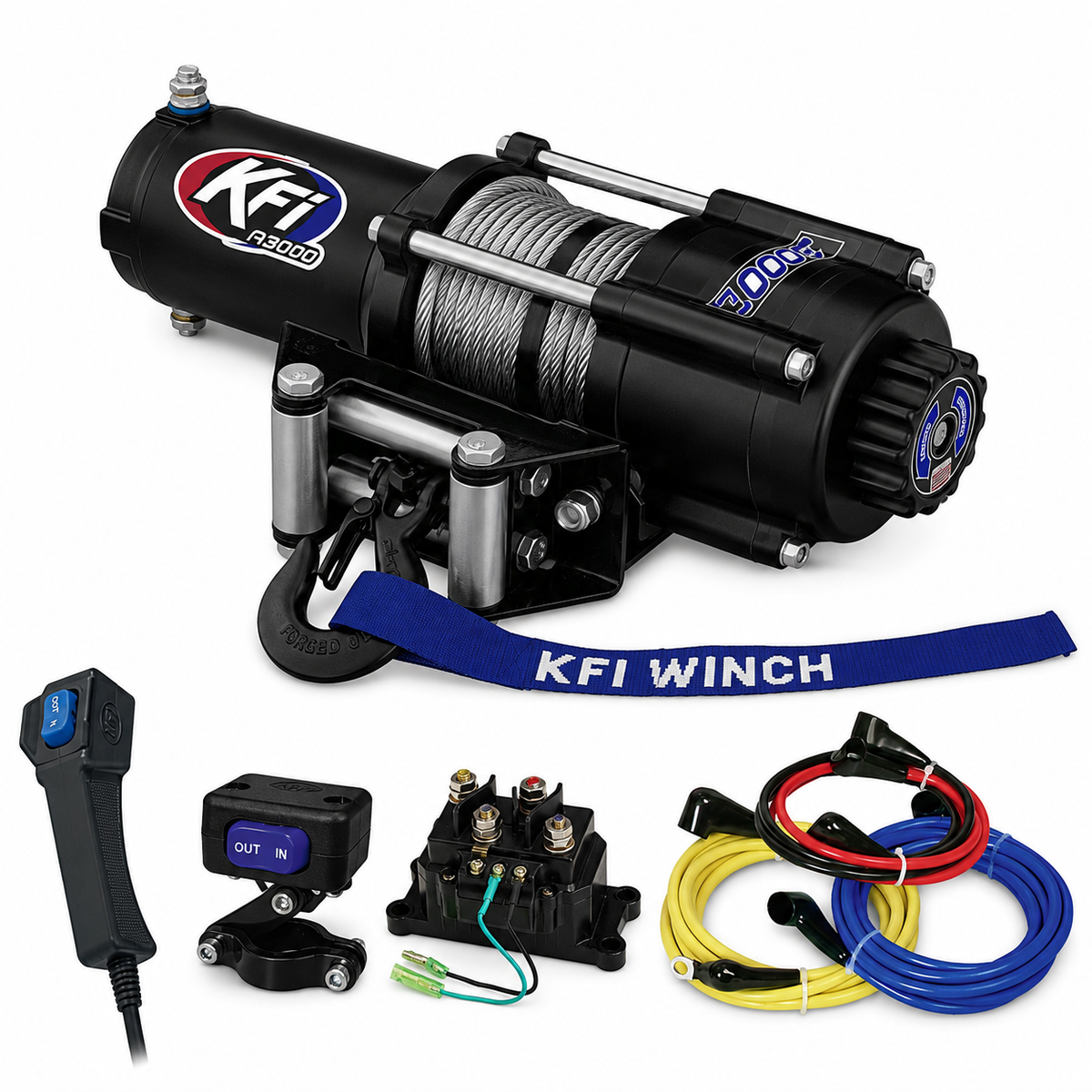

KFI 3000lb Winch Kit

Get dependable pulling power for your ATV or UTV with the KFI 3000lb winch. Compact, tough and great value, it’s ideal for farm, trail and utility use where you need a reliable workhorse, not just a showpiece.

Note: A model-specific winch mount is required to fit this winch to your ATV or UTV.
KFI do not recommend fitting synthetic rope to this model because it has an aluminium drum. Synthetic cables should only be used on winches with a steel drum as they constrict under load. For synthetic rope options, see models 350SE, 450SE and 385K.

Built under licence by KFI in China and imported direct from the USA, these winches are tested in extreme conditions and designed to give a long, reliable service life. With an all-metal planetary gear drive, dynamic and mechanical brake, and a compact footprint, this 3000lb unit delivers serious performance at a very sharp price.

Includes:

• 3000lb KFI A3000 ATV Series winch

• 4.8mm x 13m steel cable

• Multi-directional roller fairlead

• Deluxe handlebar-mounted mini-rocker control switch

• Heavy-duty corded remote switch

• Power and control wiring

• Mounting hardware for winch (vehicle-specific mount sold separately)

Specifications:

• Model: A3000 ATV Series

• Rated line pull: 3000lb / 1360kg

• Motor: 12V DC, 1.5hp permanent magnet

• Gear ratio: 171:1

• Gear/transmission: all-metal planetary gear drive

• Brake: dynamic and mechanical

• Clutch (free-spooling): all-metal cam-activated freespool

• Drum size: 38mm (D) x 84mm (L)

• Cable: 4.8mm (D) x 13m (L) steel cable

• Fairlead: multi-directional roller

• Control: handlebar-mounted mini-rocker switch + heavy-duty corded remote

• Winch dimensions: 340mm (L) x 103mm (D) x 109mm (H)

• Mount plate: fairlead mount only (model-specific vehicle mount required)

• Mounting bolt pattern: 3.00" x 4.875" (76.2mm x 123.8mm), 4-hole

• Recommended battery: 12Ah minimum

• Warranty: limited 1-year

• Winch weight (complete kit): approx. 11.3kg (24.8lb)
