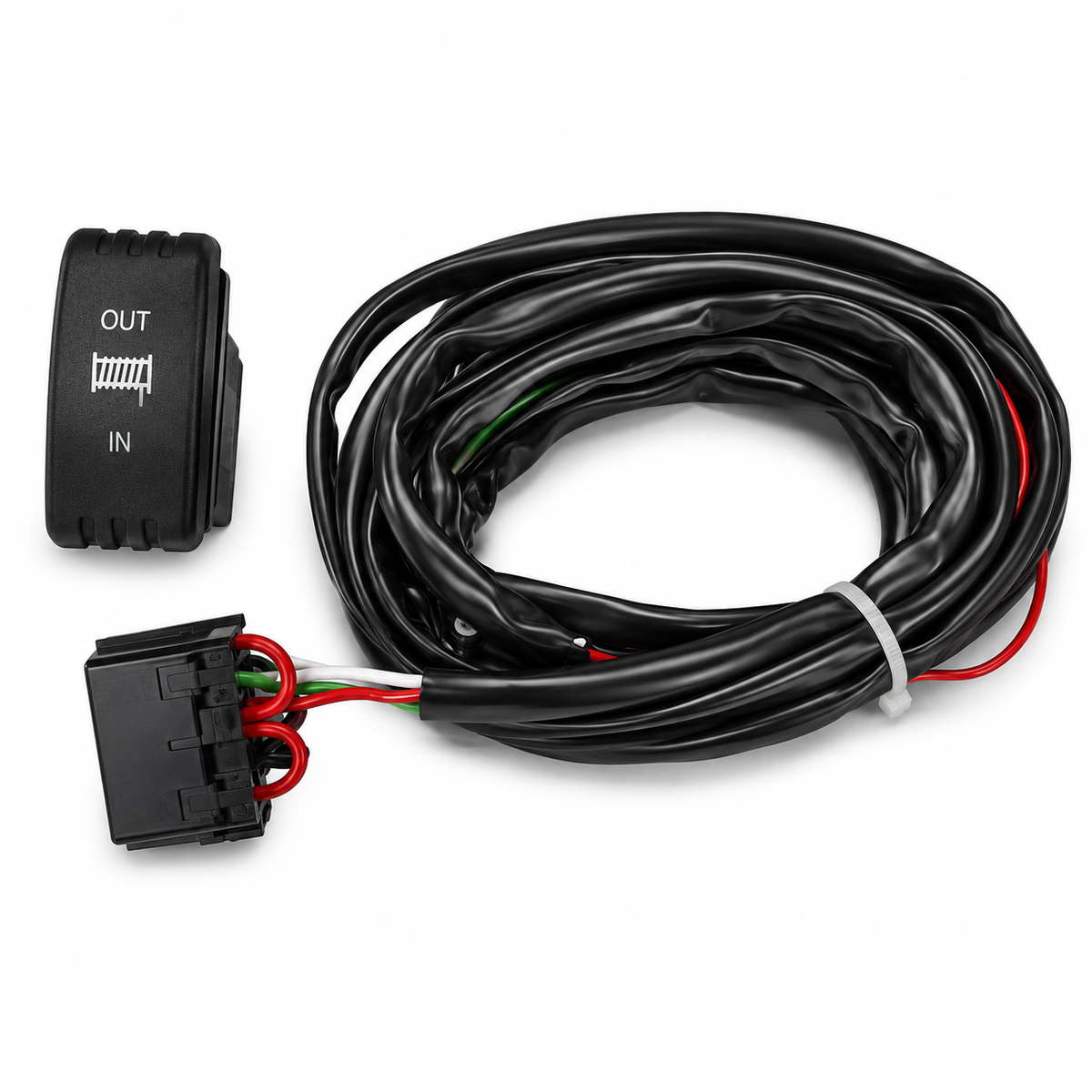

KFI Dash Rocker Switch
Model Number: UTV-DRS-K
Dash-mounted rocker switch kit for controlling your ATV or UTV winch.
Kit includes:
-
Winch rocker switch
-
Complete 3 m (10') wire harness with plug
Specifications:
-
Includes rocker switch and 3 m (10') wire harness with plug for easy wiring installation
-
Will work with most brands of ATV and UTV winches on the market with the standard electrical contactor
-
Blue LED illuminated when your key is turned on to allow you to see at night
-
Circuit type: (ON)-OFF-(ON)
-
Requires mounting hole: 21 mm (.830") x 37 mm (1.450") (standard on most UTVs)
-
Works with panel thickness ranging from 0.8 mm (.030") to 6.3 mm (.250")
-
Max current rating: 20A 12VDC and 15A 24VDC
-
Silver plated terminals
-
Requires standard ATV winch contactor to control winch
-
See wiring diagram below
