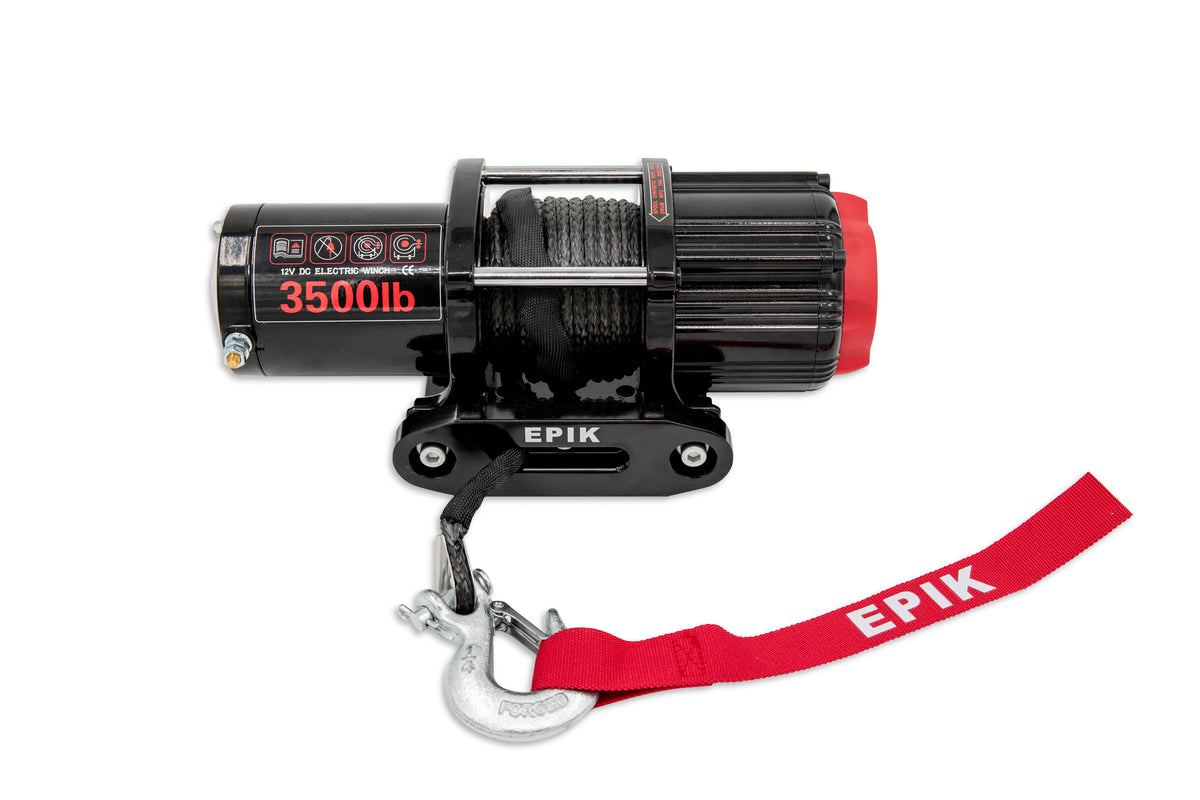

EPIK Winch 3500lb

EPIK Winch 3500LB

Step up your pulling power with the compact EPIK 3500LB winch. With a 3.3HP permanent-magnet motor, 3500lb (1,587kg) rated line pull and a 13m synthetic rope, it’s an ideal choice for ATV and UTV farm work, recovery jobs and general utility use. The 3-stage planetary gear train delivers smooth, reliable operation in tough conditions.

Backed by a 3-year warranty on mechanical parts and 1.5-year warranty on electrical parts, this winch is built for long-term use without blowing the budget. It comes with both wired and wireless remotes, so you can choose the control setup that suits you best in the paddock or on the track.

Important fitment note:
A model-specific winch mount is required to fit this winch to your ATV or UTV.

Includes:

• EPIK 3500LB winch unit

• 5mm x 13m synthetic rope

• Wired controller (approx. 2.0m lead)

• Wireless remote

• 200A sealed solenoid

• Power cables (8mm² copper: 2 x 200cm, 2 x 80cm)

Specifications:

• Model: 3500 UTV Series

• Rated line pull: 3500lb / 1,587kg

• Motor: 3.3HP sealed permanent-magnet

• Gear ratio: 166:1

• Gear train: 3-stage planetary

• Brake: mechanical spring

• Clutch: rotate 90°

• Solenoid: 200A sealed

• Rope: 5mm x 13m synthetic

• Dimensions: 327 x 128 x 122mm (12.9" x 5.0" x 4.8")

• Bolt pattern: 124 x 76.2mm
